Technical problems for MTV Networks Europe

05/11/08 (0.23 am GMT, 01:23 CET): MTV Networks Europe suffered from technical problems. As a result, all four of its satellite transponders stopped broadcasting for a couple of minutes, and when the signal came back, all channels on those transponders were broadcast in the clear. Their frequencies are:

11895 V 27500 2/3 on Astra 2A, 28°.2 east
11739 V 27500 3/4 on Astra 1G, 19°.2 east
11973 V 27500 3/4 on Astra 1G, 19°.2 east
11075 V 27500 3/4 on HotBird 6, 13°.0 east

On Astra 2A and Astra 1G, service names of most channels were replaced by temporary names.
MTVNHD disappeared from its Astra 1G and HotBird 6 frequency, MTV Portugal disappeared from Eurobird 9 (9° east).

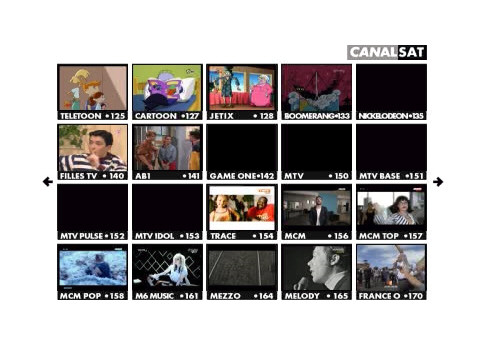

Mosaic channel from french package CanalSat displayed a black picture on missing channels from MTV.




And from 02:03 to 02:06 CET, all channels usually available on HotBird (11075 V) have been transmitted
through Astra 1G (11973 V), and then everything started to go back to normal, including the encryption,
except channels on Astra 1G (11739 V), which remained in the clear until late afternoon.

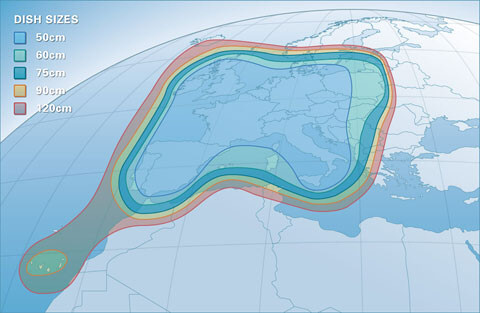

Astra 2A, 28°.2 East - 11895 V
usual provider: BSkyB
temporary provider: MTV Networks Europe

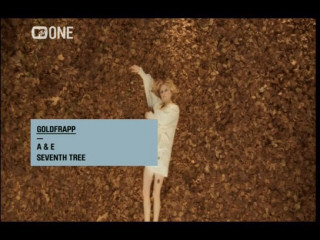

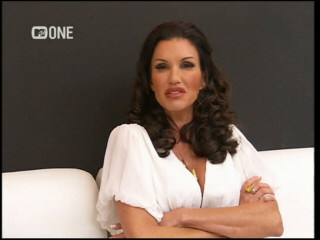

MTV ONE (UK)
usual id: MTV ONE
temporary id: MTV ONE uk

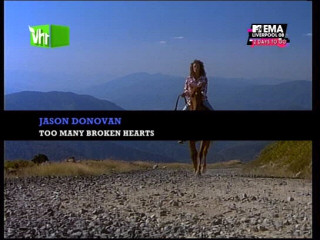

VH1 UK
usual id: VH1
temporary id: VH1 uk

MTV TWO
usual id: MTV TWO
temporary id: MTV 2

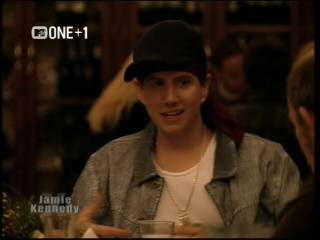

MTV ONE+1
usual id: MTV ONE +1
temporary id: MTV ONE+1

MTV HITS (UK)
usual id: MTV HITS
temporary id: MTV Hits

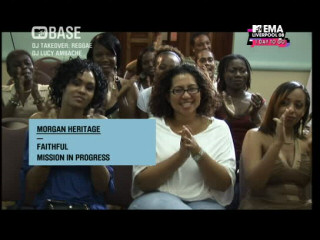

MTV BASE (UK)
usual id: MTV BASE
temporary id: MTV Base

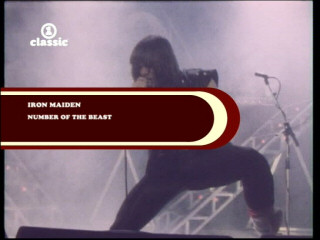

VH1 Classic (UK)
usual id: VH1 Classic
temporary id: VH1 Classic

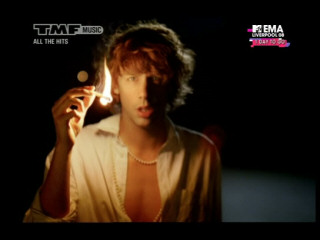

TMF (UK)
usual id: TMF
temporary id: TMF uk

MTV ONE (Ireland)
usual id: MTV ONE
temporary id: MTV ONE Eire

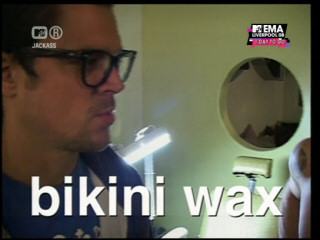

MTV®
usual id: MTV®
temporary id: MTV®

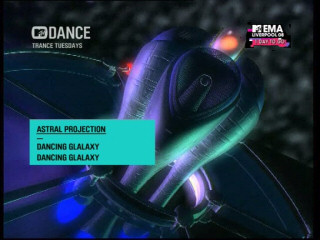

MTV DANCE
usual id: MTV DANCE
temporary id: MTV Dance

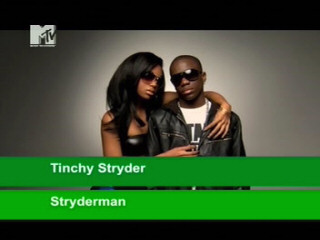

MTV Trax
usual id: MTV Trax
temporary id: MTV Interactive

Astra 1G, 19°.2 East - 11739 V
provider: MTV Networks Europe

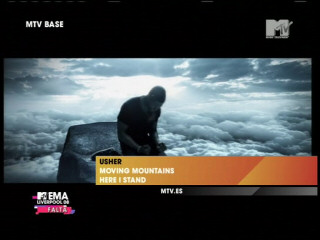

MTV España
usual id: MTV ESP
temporary id: MTV ESP

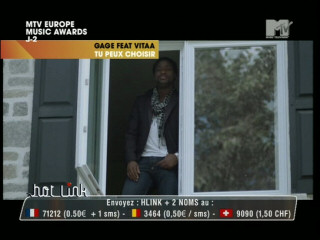

MTV France
usual id: MTV
temporary id: MTV France

MTV HITS (UK)
usual id: MTV Hits
temporary id: MTV Hits

MTV DANCE
usual id: MTV Dance
temporary id: MTV Dance

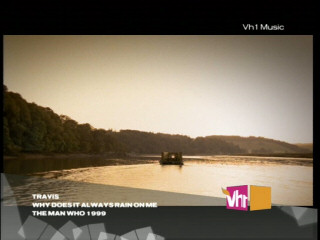

VH1 European
usual id: VH1
temporary id: VH1

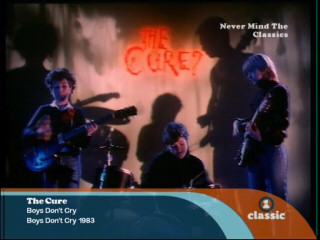

VH1 Classic Europe
usual id: VH1 Classic
temporary id: VH1 Classic

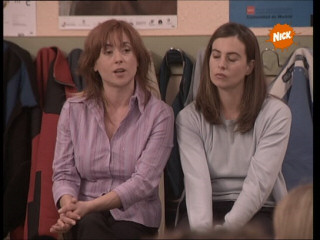

Nick (Spain)
usual id: Nick ESP
temporary id: NICK ESP

MTV TWO
usual id: MTV TWO
temporary id: MTV TWo

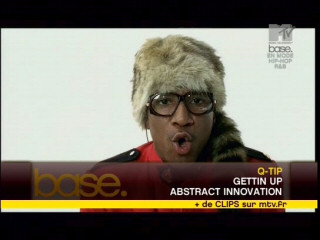

MTV Base (France)
usual id: MTV BASE
temporary id: MTV BASE

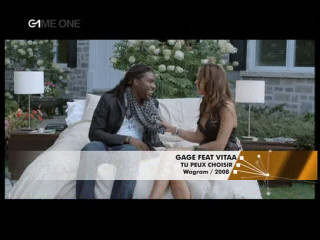

Game One
usual id: GAME ONE
temporary id: Game One

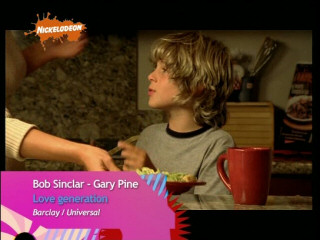

Nickelodeon (France)
usual id: NICKELODEON France
temporary id: NICKELODEON France

Astra 1G, 19°.2 East - 11973 V
provider: MTV Networks Europe

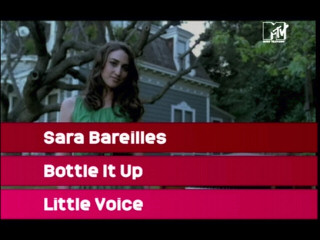

MTV Music
usual id: MTV Music
temporary id: MTV Music

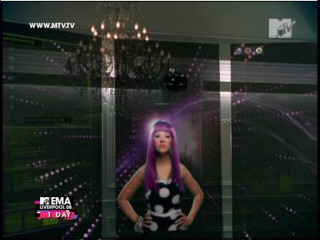

MTV European
usual id: MTV Euro
temporary id: MTV Euro

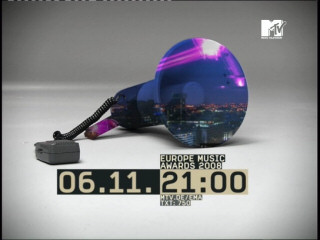

MTV Germany
usual id: MTV Germany
temporary id: MTV Germany

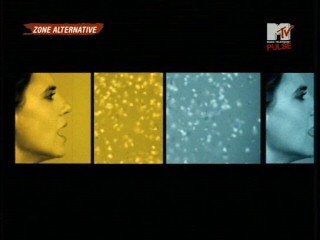

MTV Pulse (France)
usual id: MTV PULSE
temporary id: MTV Pulse

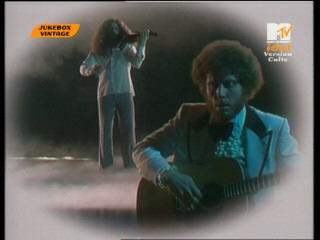

MTV Idol
usual id: MTV IDOL
temporary id: MTV Idol

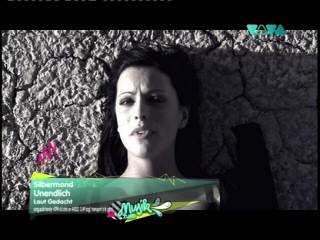

VIVA Germany
usual id: VIVA Germany
temporary id: VIVA Germany

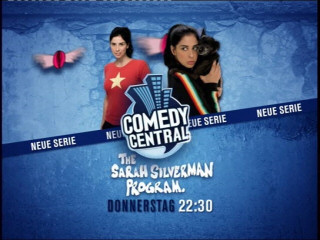

Comedy Central (Germany)
usual id: COMEDY CENTRAL Germany
temporary id: COMEDY CENTRAL Germany

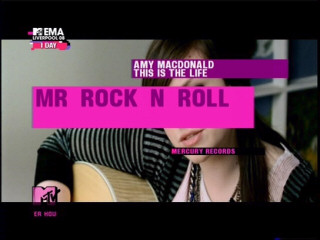

MTV NL
usual id: MTV NL
temporary id: MTV NL


Nick nach 8

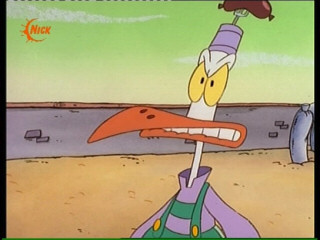

Nick (Germany)
usual id: NICK Germany
temporary id: NICK Germany

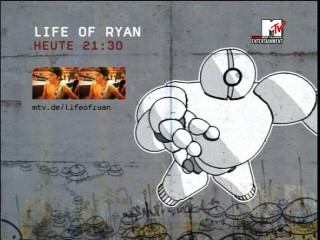

MTV Entertainment
usual id: MTV ENTERTAINMENT (P)
temporary id: MTV ENTERTAINMENT (P)

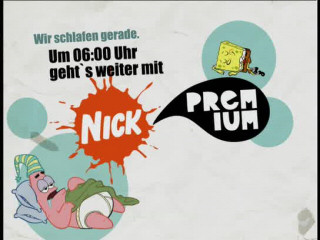

Nick Premium
usual id: NICK PREMIUM (P)
temporary id: NICK PREMIUM (P)

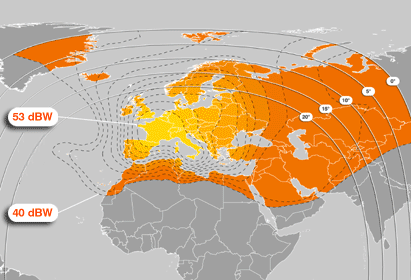

HotBird 6, 13°.0 East - 11075 V
provider: MTV Networks Europe

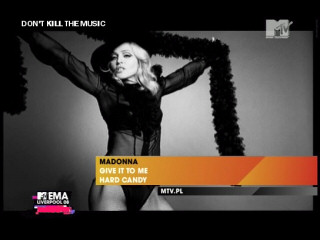

MTV Polska
usual id: MTV Polska
temporary id: MTV Polska

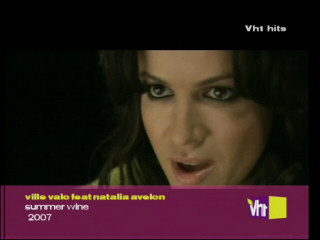

VH1 Polska
usual id: VH1 Polska
temporary id: VH1 Polska

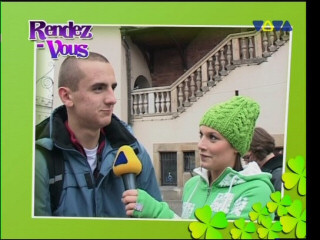

VIVA Polska
usual id: VIVA Polska
temporary id: VIVA Polska

MTV European
usual id: MTV 1
temporary id: MTV 1

VH1 European
usual id: VH1
temporary id: VH1

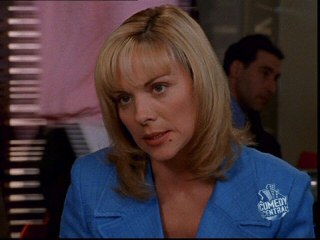

Comedy Central Polska
usual id: Comedy Central Polska
temporary id: Comedy Central Polska

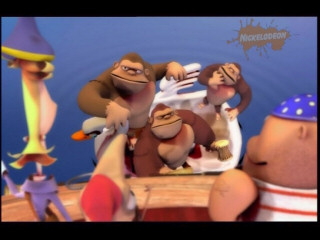

Nickelodeon Europe
usual id: Nickelodeon Euro
temporary id: Nickelodeon Europe


5th November 2008: the MTV Networks Europe satellite transponders.

Astra 2A, 28°.2 East - Transponder 10
11895 V (SR 27500, FEC 2/3) TID: 2010 - NIT: 2 - Uplink station: London
logo channel id SID VPID APID framesize
pixels
video
Kb/s
audio
Kbit/s
MTV ONE (UK version)
MTV ONE
Mti
7042
7001
7041
7042
2323 2306
2322
544 x 576 2200 256
VH1 7002 2328 2325
2327
544 x 576 2200 256

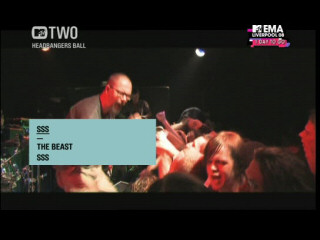

MTV TWO 7003 2332 2330 544 x 576 2200 256
MTV ONE +1 7005 2359 2357
2371
544 x 576 2200 256

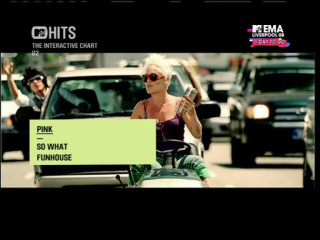

MTV HITS 7006 2335 2333 544 x 576 2200 256
MTV BASE 7007 2343 2341 544 x 576 2200 256
VH1 Classic 7008 2347 2345 544 x 576 2200 256
TMF 7009 2351 2349 544 x 576 2200 256
MTV ONE (Irish version)
MTV ONE 7010 2362 2360 544 x 576 2200 256
MTV® 7012 2355 2353 544 x 576 2200 256
MTV DANCE 7014 2339 2337 544 x 576 2200 256
MTV Trax 7021 2366 2364 352 x 288 500 192

Astra 1G, 19°.2 East - Transponder 66
11739 V (SR 27500, FEC 3/4) TID: 1066 - NIT: 1 - Uplink station: London
logo channel id SID VPID APID framesize
pixels
video
Kb/s
audio
Kbit/s
MTV ESP 28651 3011 3012 544 x 576 2500 192
MTV 28652 3021 3022 544 x 576 2500 192
MTV Hits
MTV Hits.
28654
28664
3041 3042 544 x 576 2500 192
MTV Dance 28655 3051 3052 544 x 576 2500 192
VH1
VH1.
28656
28666
3061 3062 544 x 576 2500 192
VH1 Classic
VH1 Classic.
28657
28667
3071 3072 544 x 576 2500 192
MTV TWO
MTV TWO.
28659
28669
3091 3092 544 x 576 2500 192
Nick ESP 28660 3101 3102 spa
3103 eng
544 x 576 2500 192
MTV BASE 28661 3111 3112 544 x 576 2500 192
GAME ONE 28663 3031 3042 544 x 576 2500 192
NICKELODEON France 28668 3081 3082 544 x 576 2500 192

Astra 1G, 19°.2 East - Transponder 78
11973 V (SR 27500, FEC 3/4) TID: 1078 - NIT: 1 - Uplink station: London
logo channel id SID VPID APID framesize
pixels
video
Kb/s
audio
Kbit/s
MTV Music 28671 4011 4012 544 x 576 2500 256
MTV Euro 28672 4021 4022 544 x 576 2500 256
MTV Germany 28673 4031 4032 544 x 576 2500 256
MTV Pulse (France)
MTV PULSE 28674 4041 4042 544 x 576 2500 256
MTV IDOL 28675 4051 4052 544 x 576 2500 256
VIVA Germany 28676 4061 4062 544 x 576 2500 256
COMEDY CENTRAL Germany 28677 4071 4072 544 x 576 2500 256
MTV NL 28679 4091 4092 544 x 576 2500 256
NICK Germany 28680 4101 4102 544 x 576 2500 256
MTV ENTERTAINMENT (P) 28681 4111 4112 544 x 576 2500 256
NICK PREMIUM (P) 28682 4121 4122 544 x 576 2500 256

HotBird 6, 13°.0 East - Transponder 128
11075 V (SR 27500, FEC 3/4) TID: 12800 - NIT: 318 - Uplink station: London
logo channel id SID VPID APID framesize
pixels
video
Kb/s
audio
Kbit/s

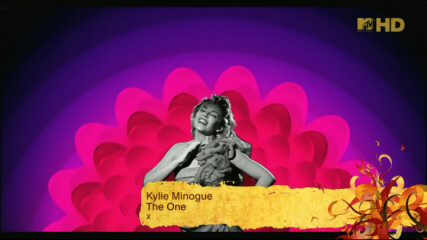

MTVNHD
MTVNHD
1
21
1011 1012 1920 x 1080 10600 256
MTV Polska
MTV Polska.
2
22
161 84 544 x 576 3500 192
VH1 Polska
VH1 Polska.
4
24
163 92 544 x 576 3200 192
VIVA Polska
VIVA Polska.
5
25
164 96 544 x 576 3500 192
MTV 1 6 165 100 544 x 576 2500 192
VH1 7 166 104 544 x 576 2800 192
Comedy Central Polska
Comedy Central Polska.
10
30
169 116 544 x 576 2800 192
Nickelodeon Euro 11 1000 1001 eng
1002 por
1003 rus
1004 hun
544 x 576 2800 192

Capacity from other providers is also leased on the following satellites
logo channel id Satellite
Frequency
SID VPID APID framesize
pixels
video
Kb/s
audio
Kbit/s
MTVNHD
MTVNHD
Astra 1G, 19°.2 East
11778 V 27500 3/4
28600
28601
2000 2001
2002 (AC3)
1920 x 1080 10600 256

Nick Germany (Austrian version)
(0600-1915 CET)

VIVA Germany (Austrian version)
(1915-0600 CET)
NICK AUSTRIA Astra 1H, 19°.2 East
12226 H 27500 3/4
28640 513 661 720 x 576 2700 192
MTV Germany (Austrian version)
MTV AUSTRIA Astra 1H, 19°.2 East
12226 H 27500 3/4
28641 515 642 720 x 576 4000 192

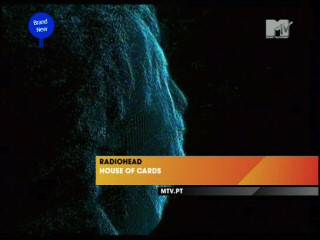

MTV Portugal Eurobird 9, 9° East
11996 V 27500 3/4
610 3001 3011 544 x 576 2800 192

Nickelodeon France (Belgian version)
(0600-1800 CET)

MTV France (Belgian version)
(1800-0600 CET)
MTV/MICK WALLONNE Eurobird 3, 33° East
11139 V 4883 2/3
1 4194 4195 720 x 576 6100 384
MTVONE +2 Eurobird 1, 28°.5 East
11344 H 27500 2/3
53286 2326 2327
2328
544 x 576 2800 192
